Quick Lube Center Equipment -- Upper Level Bay

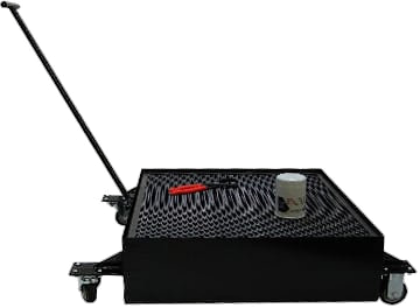

Drain Cart

The drain cart is a great option for draining fluids such as oil, transmission fluid or coolant from vehicles that sit higher or when a pit isn’t available. With two fixed wheels in the back, two wheels that swivel in the front and the long reach handle, it can be easily maneuvered with one hand. The mesh screen allows you to leave filters on top to drain completely.

Interior baffle minimizes splashing

Dimensions: 28″L x 28″W x 8″D

Comes pre-assembled Available in black or green

Part # DC-25

Part # AFR-1

Air Filter Rack

This easily assembled air filter rack displays up to 96 air filters of various sizes with or without packaging. Filters can be accessed from either side and the lightweight design makes it easy to move around the garage. The 4 adjustable glides allow for easy leveling on any surface

Heavy duty 14 gauge steel construction

Dimensions: 84″W x 18″D x 52″H

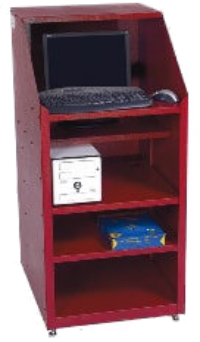

Work Stations and Computer Stations

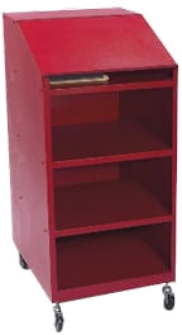

We have two computer/work station designs to accommodate your technology, such as a traditional PC, laptop, or notebook. Our standard CS-1 is 23” wide and will accommodate PC’s and monitors or laptops, with adjustable shelving for a printer or storage. Our WS-23 comes with a slanted desktop lid that can be lifted open to access the storage space underneath and gives some protection in misty environments, such as near carwash entrances or exits. Both will accommodate the optional CS-1 Wheel Kit that comes with 2 fixed wheels and 2 swiveling wheels that lock.

14 gauge steel construction

Powder coated red (or custom color)

Part # CS-1

Part # WS-23

23” W x 28” D x 48” H

23” W x 28” D x 42” H

Adjustable Padded Feet

Casters available as an option

Computer Pedestal

Our computer pedestal includes a mounting bracket for a flat screen, a keyboard shelf, and storage. This pedestal has the advantage of being able mount an optional monitor on the back side to allow customers or service techs to view work orders from the vehicle or the bay area. Smaller footprint allows for limited space installations (24″W x 18″D x 60″H) Optional tool shelf available with our CP-1-TS model (shown in picture) Powder coated black (or custom color) Top of standard has a removable cap and opening in the center of bottom mounting plate to allow for electrical and CAT wiring from above or below

Part # CP-1

The air hose pedestal is attached to the floor. This prevents the hose from being a trip hazard, and makes it easy to identify the hose location. 8″ Base Plate Color can be customized 24″H x 6″W x 6″D

Part # AHP-Stand Red w/roller guide

The air hose pedestal is also stand alone or paired with our vacuum cleaner stand Part # AVP-A. This prevents the hoses from being a trip hazard, and makes it easy to identify the hose location. 6″ Base Plate Color can be customized 24″H x 6″W x 6″D for a stand alone 24”H x 10 1/2 “ W x 7 3/4" for Air-Vac combo

Part # AHP-A Black

Part # LB-7

7 Station Lube Bar

Lube bars are attached to the floor of the shop to accommodate oil hoses and dispensers. Dispenses 7 products Heavy duty steel construction Chemical resistant powder coat, red or custom color Place between two bays for access to both Eliminates need for individual hose reels Great for retro-fitting existing lube centers HDPE hose guides reduce wear 11″W x 42″L x 33″H

Also available: LB-10, LB-9 – 11″W x 52″L x 33″H. LB 6, LB-8- 11”W x 42”L x 33”H. LB-4, – 11”W x 26”L x 33”H

Part # LC-10

10 Station Lube Console

Lube consoles have a two level hose guide pattern, with space for dispensers on each level. HDPE hose guides reduce wear Pairs well with computer/work station Eliminates need for individual hose reels Heavy duty steel construction Chemical resistant powder coat, red or custom color 30″W x 14″L x 43″H

Also available: LC-9 - 30″W x 14″L x 43″H, LC-11, LC-12 – 36″W x 15″D x 43″H

PRODUCTS

Upper Level Bay

Lower Level Bay

Toll Free:

(800) 326-1711

Phone:

(817) 222-2253

Fax:

(817) 222-2445

Unilube Systems, Ltd.

4918 Rondo Drive

Fort Worth, TX 76106

Oil Change Accessories

Call Us

Toll Free (800) 326-1711

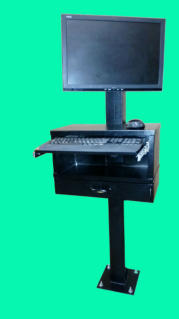

The computer pedestal is floor mounted with a swivel mounting bracket for a flat screen, a retractable keyboard shelf, and storage. Space saving design Powder coated black (or custom color) 23″W x 16 1/2″D x 44″ (plus additional 14 1/2" for swivel monitor mount)

Part # CP-09

Part # AVP-A

Air Hose Pedestals for Your Lube Center

LC-7 and LC-8 NO LONGER AVAILABLE
